Flextool

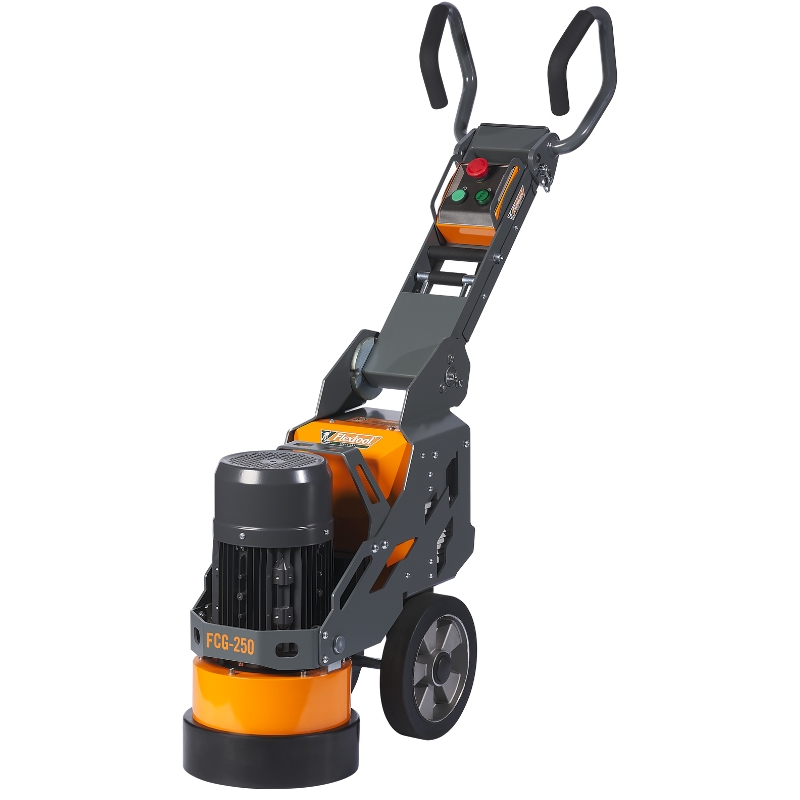

Single Head Concrete Grinder FCG-250

The Flextool Single Head Concrete Grinder FCG-250 is compact in design and delivers exceptional grinding capability. The combination of the direct drive system and the motor positioned directly over the grinding head, allow for efficient and aggressive grinding. Designed for professionals, the FCG-250 has a detachable grinding head for easier transportation, a folding handle with adjustable handlebar, easy access control panel and a central lifting hook.

The innovative floating grinding head with self-levelling pivot follows the floor profile, which promotes even wear of the grinding shoes. A floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head.

This machine is ideal for small and medium domestic or commercial projects, where coating removal, levelling high spots, or general concrete grinding and surface preparation are needed.

Changing grinding shoes is fast and hassle-free with the Easy Lock tooling system. Compatible with the Redi Lock system, this machine comes standard with a grinding shoe adaptor plate. Compatible concrete grinding shoes can be found here and concrete grinding plate here.

The Flextool Single Head Concrete Grinder FCG-250 should be used with a quality H-class dust collector, such as the Flextool Dust Collector FDC-1A or FDC-1M

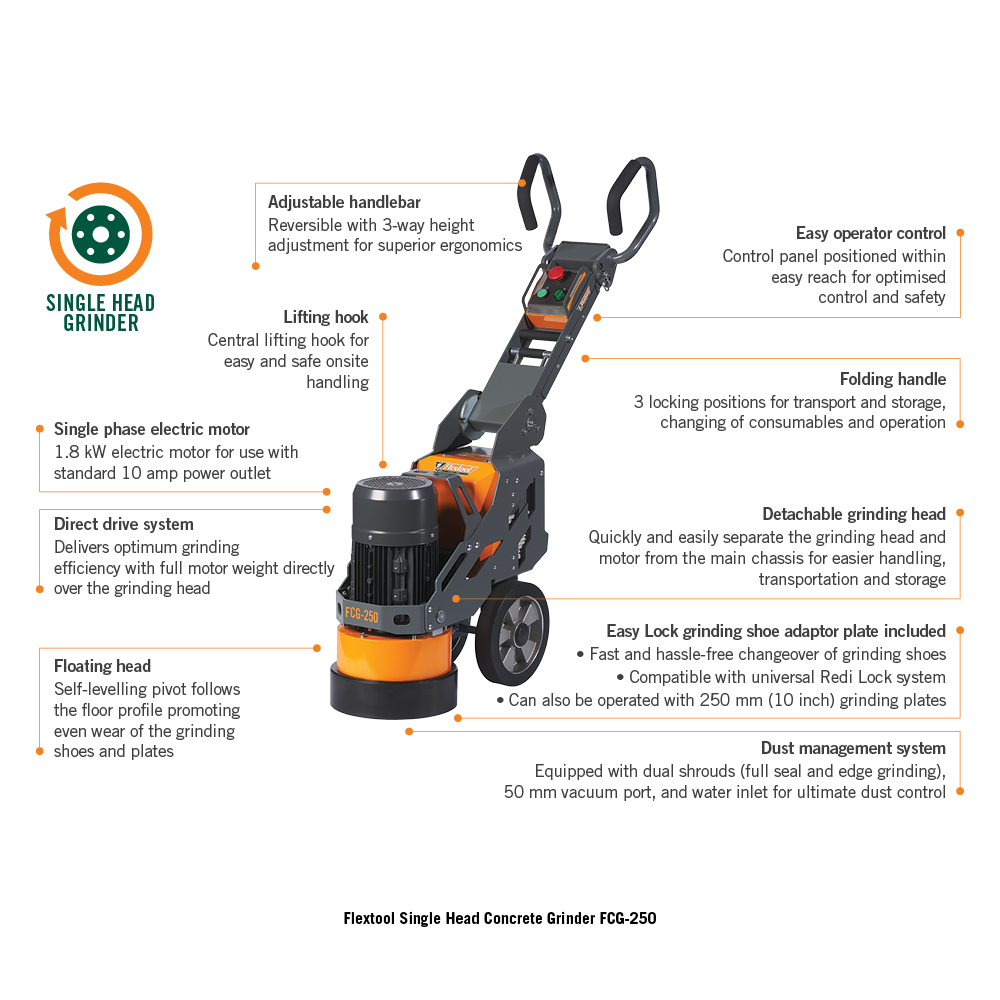

• Easy operator access with control panel positioned within reach for optimised control and safety
• Floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head
• Fitted with 50 mm outlet for connection to vacuum system
• Single phase 1.8 kW electric motor for use with standard 10 amp power outlet
• Floating head with self-levelling pivot that follows the floor profile, promoting even wear of the grinding shoes and plates
• Direct drive system delivers optimum grinding efficiency with full motor weight directly over the grinding head
• Detachable grinding head for quick and easy separation of the grinding head and motor from the main chassis for easier and lighter handling and transportation
• Reversible 3-way height-adjustable handlebar for superior ergonomics and operator comfort
• Folding handle with 3 locking positions for transport and storage, changing of consumables and operation
• Central lifting hook for easy and safe onsite handling

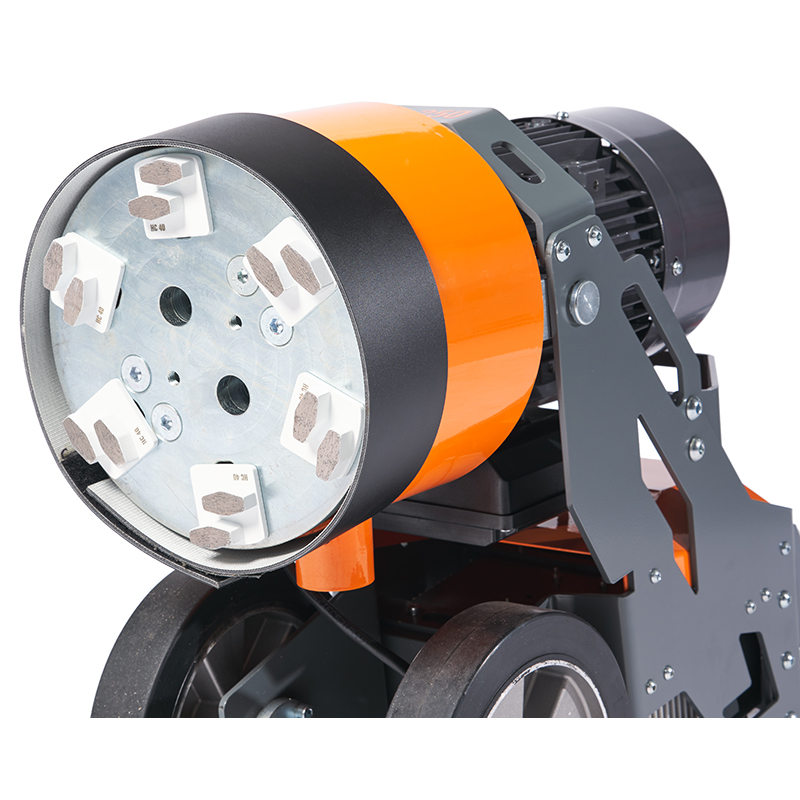

• Comes standard with a 250 mm Easy Lock grinding shoe adaptor plate
• Compatible with universal Redi Lock tooling system for fast and hassle-free changeover of grinding shoes. Can also be operated using 250 mm / 10" grinding plates
• Can be used with a heavy-duty extension lead with a minimum 3 x 1.5 mm2 cable which does not exceed 20 metre in length
• This product is covered by the Flextool Promise - click here to learn more

Technical Information (download)

		Data Sheet – Flextool Single Head Concrete Grinder FCG-250
		Operating Instructions - Flextool Single Head Concrete Grinder FCG-250
		Risk Assessment - Flextool Concrete Grinder - All models
		Spare Parts Manual – Flextool Single Head Concrete Grinder FCG-250

Flextool Single Head Concrete Grinder FCG-250
